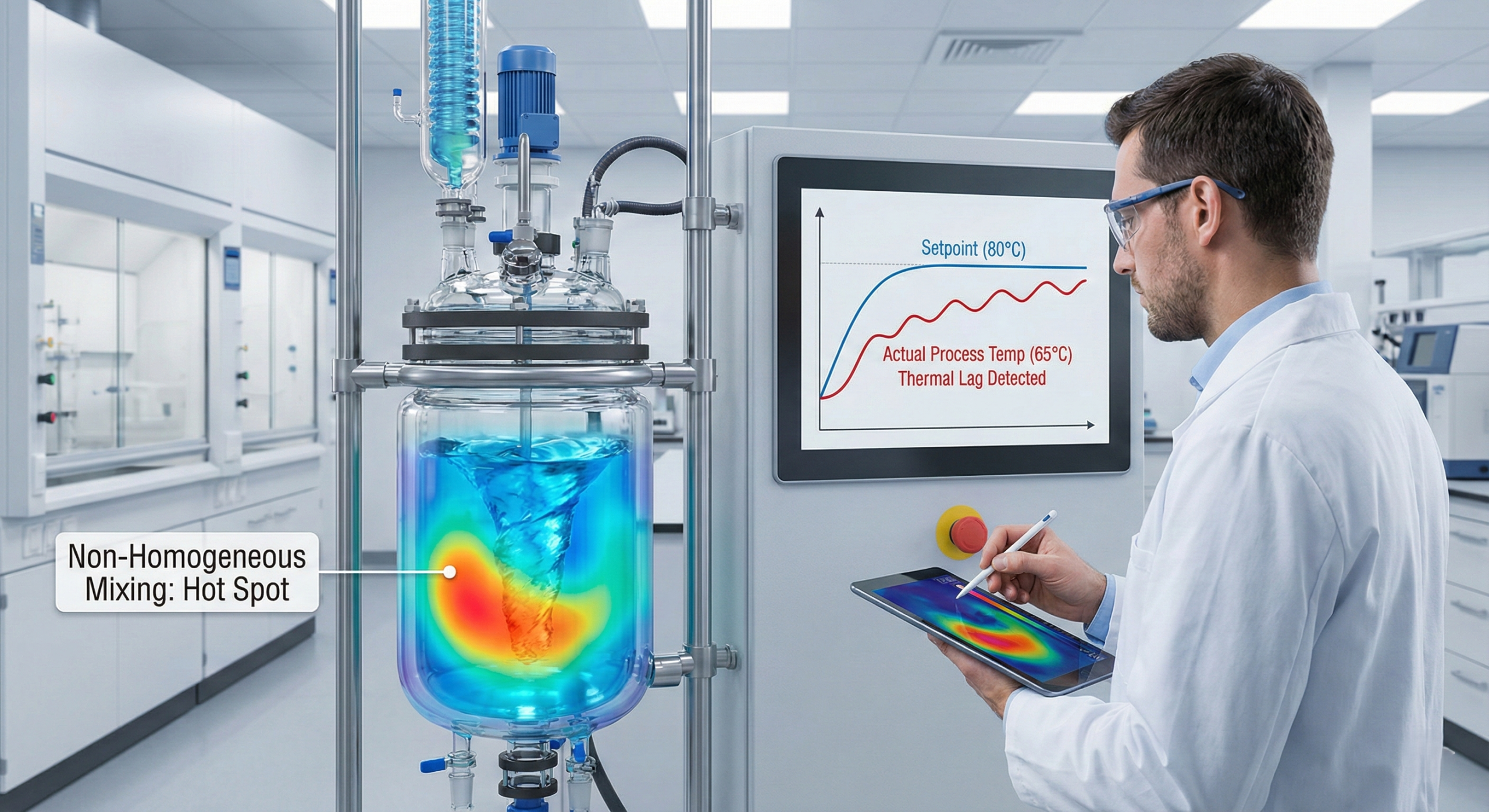

Troubleshooting Temperature Control: Mastering Thermal Lag and Hot Spots in Glass Reactors

In precision chemistry, temperature isn’t just a variable; it’s the conductor of the entire orchestra. When processes drift, troubleshooting temperature control becomes the top priority to maintain reaction rates, selectivity, crystal morphology, and safety.

Every process engineer knows the sinking feeling of watching a trend line detach itself from the setpoint. You ask for 20°C; the process drifts to 25°C. You demand a rapid cool-down to quench a reaction, and the temperature barely crawls downward.

When you are working with stainless steel or Hastelloy, heat transfer is rarely the bottleneck—the metal is highly conductive. But in the world of borosilicate glass reactors, we are fighting physics. Glass is, by nature, an insulator. Its thermal conductivity is roughly 1/15th that of stainless steel.

At HWS Labortechnik Mainz, we engineer our systems to overcome this inherent limitation. Yet, even the best-designed reactor can suffer from thermal issues if the supporting system isn’t optimized.

If you are battling thermal lag, unexplained hot spots, or sluggish ramp rates, don’t immediately blame the chemistry. It’s time to start troubleshooting the temperature control loop. This guide breaks down the diagnostics, the physics of jacket design, and the often-overlooked impact of your thermal fluid choice.

Defining the Problem: Are You Lagging or Spotting?

Before tearing apart your setup, clearly define the symptom. Effective troubleshooting of temperature control relies on distinguishing between two common issues that often have different root causes.

1. Thermal Lag (The “Elastic Band” Effect)

This is the delay between a change in the jacket temperature setpoint and the corresponding response in the process medium.

The Symptom: You set a ramp from 20°C to 80°C over 30 minutes. The jacket hits 80°C on time, but the process liquid is still stuck at 65°C and dragging behind.
The Risk: In exothermic reactions, significant lag means your cooling system is always chasing the reaction tail, increasing the risk of thermal runaway.

2. Hot Spots / Cold Spots (Non-Homogeneity)

This is a localized area within the reactor that is significantly hotter or colder than the bulk average temperature measured by your probe.

The Symptom: Your PT100 reads the correct target temperature, yet you are seeing charred product on the walls near the heating injection point, or unreacted material in dead zones at the bottom of the vessel.
The Risk: Inconsistent product quality, lower yields, and localized degradation of the glass due to thermal stress.

The Diagnostic Phase: Initial Steps in Troubleshooting Temperature Control

As engineers, we sometimes jump straight to complex solutions. Before you redesign your process or buy a bigger circulator, rule out the basics. Often, the first step in troubleshooting temperature control involves simple mechanical checks.

Check Your Agitation (The Reynolds Number Reality)

Heat transfer in glass relies almost entirely on forced convection. The jacket transfers heat to the inner glass wall; the agitator must strip that heat away from the wall and distribute it into the bulk fluid.

If your stirrer is running too slow, or you are using the wrong impeller type for your viscosity (e.g., a simple anchor stirrer in a low-viscosity aqueous solution), you have a thick, stagnant boundary layer right against the glass wall. This layer acts as incredible insulation. Increasing turbulence at the wall is the single fastest way to improve heat transfer (the U-value).

Verify Probe Placement

A PT100 sensor only tells you the temperature at its specific tip location.

Is the probe tip submerged deep enough in the reaction mass?
Is it placed in an active mixing zone, or stuck in a baffle shadow where flow is dead? A misread of just 2-3°C due to poor placement can lead your circulator to overcompensate, causing oscillations and making you believe you need to start troubleshooting the temperature control unit itself, when it’s actually just a sensor position issue.

The Deep Dive: Why Jacket Design Matters

If agitation and sensors are ruled out, we must look at the reactor itself. This is where the difference between generic glassware and engineered HWS systems becomes glaring. Troubleshooting temperature control issues often leads back to fundamental flaws in basic jacket design.

The goal of a reactor jacket is not just to hold fluid; it is to force that fluid into turbulent flow across the entire surface area of the inner vessel.

The Problem with Standard Jackets

In basic glass reactors, thermal fluid often takes the path of least resistance. It enters the bottom nozzle, shoots straight up one side, and exits the top nozzle. This creates massive “dead zones” on the opposite side of the reactor where fluid stagnates. The heat transfer in those dead zones is dismal, leading to severe hot/cold spots.

The HWS Approach: Engineered Turbulence

At HWS Mainz, we design our jackets to battle stagnation.

1. Tangential Nozzles: We don’t just weld nozzles straight onto the side. Our inlet and outlet nozzles are often mounted tangentially. This forces the entering thermal fluid into a swirling, helical path around the vessel. This rotation helps ensure the fluid covers the entire surface area before exiting.

2. Optimized Annular Space: The gap between the inner vessel and the outer jacket is critical. Too wide, and the fluid moves too slowly (laminar flow). Too narrow, and the pressure drop is too high for your circulator pump. We calculate this space to balance flow velocity with reasonable pressure demands, maximizing the Reynolds number inside the jacket.

3. Baffling (For Larger Systems): On our larger pilot-scale reactors, we can incorporate internal glass winding or baffling within the jacket itself. This physically forces the fluid to travel a longer path at higher velocity, scrubbing heat away from the inner wall.

The Hidden Culprit: Your Thermal Fluid Choice

You can have a Ferrari of a reactor and a Lamborghini of a circulator, but if you put crude oil in the tank, it won’t perform. The choice of thermal fluid is perhaps the most common, yet most ignored, factor when troubleshooting temperature control.

It all comes down to viscosity at operating temperature.

The Viscosity Trap at Low Temperatures

Many labs use a “do-it-all” silicone oil rated from -50°C to +200°C. At +100°C, this oil is thin like water. Heat transfer is excellent. At -20°C, however, that same oil turns into thick syrup.

When high-viscosity fluid enters your reactor jacket, it reverts to laminar flow. It clings stubbornly to the walls of the jacket and doesn’t mix with itself. The heat transfer coefficient plummets. Your powerful circulator is now just straining its pump, trying to push sludge through the system, generating its own heat in the process.

The Fix: Choose a fluid optimized for your specific target range. If you need rapid cooling at -40°C, you need a specialized low-viscosity fluid (like a specific Syltherm or DW-Therm), not a general-purpose high-temp oil.

Fluid Degradation

When was the last time you changed your thermal oil? Over time, organic fluids oxidize, especially if run frequently at their upper temperature limits. This “cracking” increases viscosity and creates sludge that coats the inside of your reactor jacket, adding yet another layer of insulation. Dark, burnt-smelling fluid is an immediate red flag during any temperature control troubleshooting exercise.

FAQ: Common Temperature Control Queries

Q: Why is my glass reactor cooling down so slowly? A: Assuming your circulator has enough cooling power (kW), slow cooling is usually caused by high fluid viscosity at low temperatures. If your thermal fluid becomes thick below 0°C, it cannot flow turbulently in the jacket, severely limiting heat removal. Check your fluid’s viscosity-temperature curve.

Q: How do I calculate the necessary cooling power for my exotherm? A: You need to know the heat of reaction ( usually obtained via reaction calorimetry, like RC1). Once you know the energy release rate (Watts or J/s), you need a chiller that can exceed that removal rate, accounting for the efficiency losses through the glass wall. HWS can assist with these calculations during system design.

Q: Can I improve heat transfer without buying a new reactor? A: Yes. Start by maximizing agitation turbulence (check impeller type and speed). Next, ensure you are using the lowest viscosity thermal fluid possible for your temperature range. Finally, ensure your circulator pump has enough pressure head to maintain high flow rates through the jacket.

Conclusion: Precision Requires a System Approach

Troubleshooting temperature control in glass reactors is rarely about fixing one single component. It is about balancing the triad of agitation dynamics, jacket engineering, and thermal fluid properties.

If your current setup is struggling to maintain tight control, or if thermal lag is adding unacceptable time to your batch processes, it might be time to evaluate the system as a whole.

At HWS Labortechnik Mainz, we don’t just sell glass vessels; we engineer thermal solutions. If you are battling persistent hot spots or dangerous lags, contact our technical team. We can help analyze your setup, recommend the right jacket configuration, or suggest retrofits to get your process back under strict control.
