Mastering Multistep Synthesis: Integrating Separation and Drying in One Setup

Pharmaceutical and fine chemical researchers often find multistep synthesis complicated. Indeed, a single synthetic route might involve a series of reactions, extractions, filtrations, and drying stages—all with their own timing, sensitivity, and operational requirements. In many cases, these tasks are distributed across multiple instruments and workstations, which inevitably introduces delays, handling errors, and contamination risks.

But what if you could instead streamline these steps into a single, flexible setup?

Fortunately, thanks to advances in modular glass reactor systems, it is now possible to integrate reaction, separation, and drying operations within one unit, thereby minimizing cross-contamination and accelerating timelines. This article therefore explores how to design and operate such setups effectively in both R&D and pilot-scale laboratories.

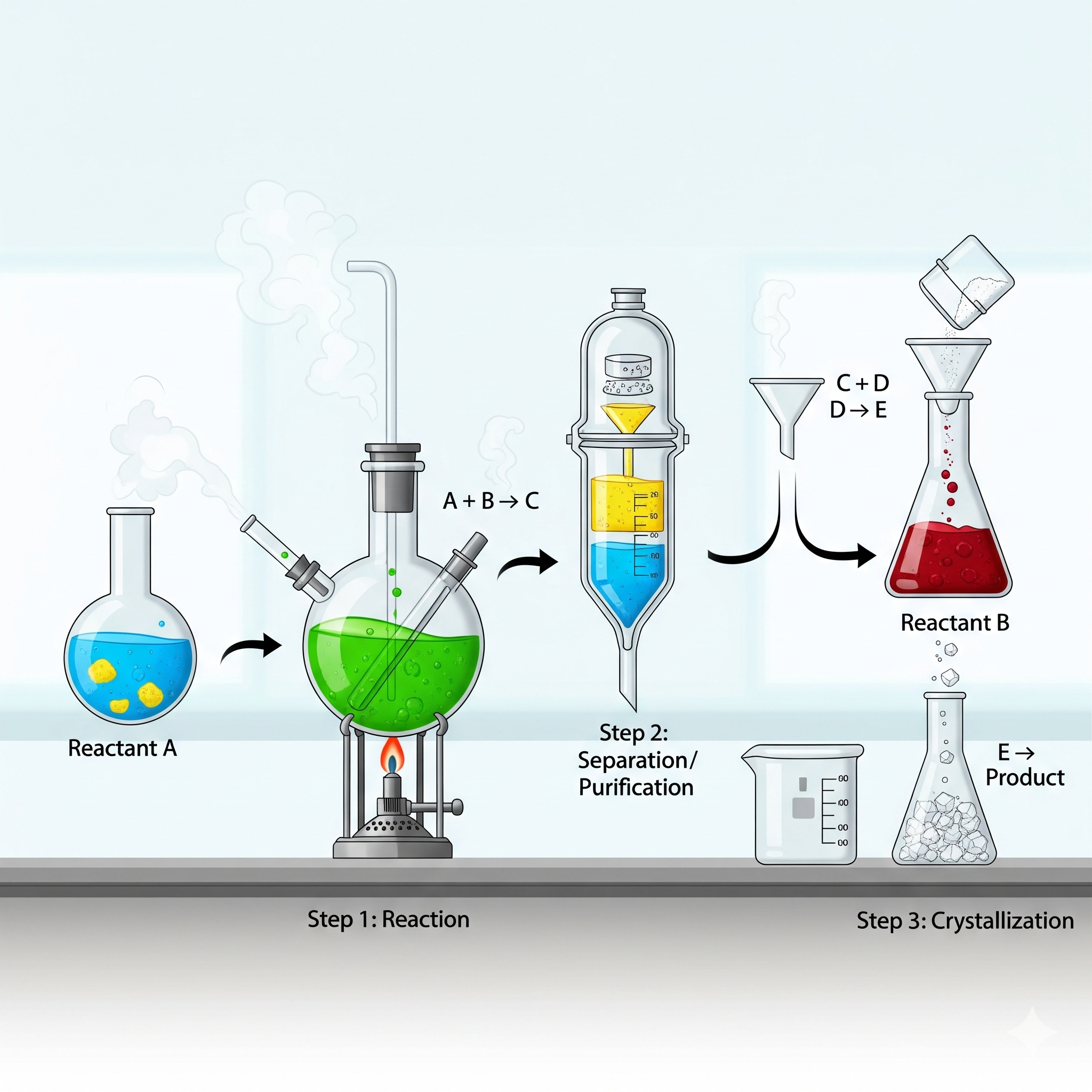

The Complexity of Multistep Synthesis

Multistep synthesis typically requires several consecutive operations, including:

Reaction under controlled temperature and stirring
Separation of products (via distillation, filtration, or liquid–liquid extraction)
Purification of intermediates or crude products
Drying of solids or removal of solvents

Each of these operations adds complexity to the workflow. Moreover, inconsistent handling between steps can compromise yields and purity, while solvent transfers pose safety and environmental risks.

This is precisely where glass reactor systems shine. Their modular design allows the chemist to switch between functions with minimal intervention, and thus maintain closed, inert conditions when necessary.

Why Modular Glass Reactor Systems Are Ideal

Glass reactors have long been the gold standard in lab-scale chemistry, especially in pharmaceutical R&D. Furthermore, when equipped with proper accessories—such as vacuum filtration modules, distillation columns, and drying chambers—they become versatile platforms capable of handling multistep operations in a single setup.

As a result, chemists gain flexibility, safety, and reproducibility all at once.

Key Advantages:

Reduced handling and contamination risk: Fewer transfers between vessels mean fewer opportunities for errors.
Improved reproducibility: The same environment supports multiple reaction stages.
Faster turnaround: There is no need to clean and reassemble different equipment.
Real-time monitoring: Transparency allows direct visual inspection of liquid and solid phases.

In a well-designed setup, therefore, the glass reactor is no longer just a reaction vessel—it becomes the central command center of your synthesis workflow.

Common Configurations for Integrated Setups

To streamline multistep synthesis more effectively, researchers typically configure their glass reactor systems to handle integrated stages that combine synthesis, separation, and drying.

1. Synthesis + Distillation (Solvent Removal or Fractionation)

After a reaction is complete, the most immediate task is often removing the solvent or separating volatiles.

Setup:

Jacketed glass reactor with temperature control
Vigreux or packed distillation column
Condenser with receiving flask
Vacuum controller (for azeotropes or low-boiling solvents)

Use Case:
For reactions under reflux conditions, this setup allows a seamless transition to solvent removal without exposing the product to ambient air. Consequently, product purity and yield are maintained.

2. Reaction + Filtration (Solid–Liquid Separation)

After crystallization or precipitation, solid products must be separated and washed.

Setup:

Glass reactor with bottom valve connected to a glass Nutsche filter or sintered disc filter
Optionally paired with vacuum pump for faster filtration
Wash solvent added through a side port

Use Case:
In this configuration, solid–liquid separation becomes highly efficient. It is ideal for isolating intermediates or final products after a reaction or pH-induced precipitation. Additionally, it reduces manual handling and risk of sample loss.

3. Filtration + Drying (Integrated Post-Processing)

Once filtered, the solid can be dried directly in the same apparatus—a significant advantage for moisture-sensitive products.

Setup:

Nutsche filter-dryer connected to glass reactor
Heat applied via jacket or radiant source
Integrated vacuum and nitrogen purge
Optional IR probe or humidity sensor to monitor drying progress

Use Case:
This method ensures minimal exposure and full drying without product transfer. Therefore, it is highly advantageous for APIs and other moisture-sensitive compounds.

Real-World Example: Peptide Intermediate Purification

To illustrate, consider a three-step process for synthesizing a peptide intermediate:

Boc-protected coupling reaction
Aqueous work-up with pH-controlled phase separation
Crystallization and drying

Using a 10-liter jacketed glass reactor, the researcher proceeds as follows:

Step 1: The reaction is carried out under nitrogen with stirring and external heating.
>Step 2: Water is then added directly, and the reactor is used to separate organic and aqueous layers via a phase separator port.
>Step 3: Crystallization is induced by cooling and anti-solvent addition. The precipitate is filtered through the integrated filter and dried under vacuum.

As a result, total synthesis time is reduced by 40%, yield improves by 12%, and operator handling steps decrease from nine to four. Ultimately, this demonstrates how an integrated setup can transform laboratory efficiency.

Drying Methods: Choosing the Right Option for Integrated Systems

When it comes to drying, the right approach depends on the product’s thermal sensitivity, particle size, and residual solvent requirements. Fortunately, glass reactor–based systems support several complementary strategies.

Vacuum Drying in the Reactor
Apply vacuum and gentle heat through the jacket.
Ideal when solids crystallize within the reactor itself.
Rotary Evaporation (as a Connected Module)
Used for removing solvents after filtration or prior to crystallization.
Moreover, it can be directly connected via ground glass joints or tubing.
Nutsche Filter–Dryer
A dual-purpose unit for both filtration and drying.
Consequently, product transfer and exposure are avoided.
Drying Under Nitrogen Flow
Applied to products that degrade under vacuum.
Additionally, it enables gentle evaporation while maintaining inert conditions.

Each of these methods, when implemented as part of a unified glass reactor platform, helps prevent product loss and contamination.

Considerations for Design and Scale-Up

When designing an integrated system for multistep synthesis, it is important to keep the following factors in mind:

Volume range: Ensure the reactor supports both reaction and work-up volumes.
Port configuration: Include sufficient entries for reagents, sampling, vacuum, and sensors.
Heat exchange: Rapid heating and cooling are vital for smooth step-to-step transitions.
Automation: PLC control or programmable profiles can significantly improve reproducibility and reduce operator workload.

Furthermore, as you move toward pilot scale, consider upgrading to larger glass reactor systems with similar modularity. This way, your optimized workflow can be replicated beyond the lab bench with consistent results.

Wrapping Up: One Setup, Many Functions

The complexity of multistep synthesis is inevitable, however, inefficiency doesn’t have to be. By leveraging modern glass reactor systems with integrated separation and drying capabilities, research chemists can therefore reduce handling time, improve yield, and ensure a safer, more reproducible workflow.

Whether you’re purifying a small batch of an API intermediate or scaling a lead compound for toxicology studies, HWS consequently offers reactor systems designed for both flexibility and control. In conclusion, our modular setups help pharmaceutical R&D teams master complexity—one integrated step at a time.
