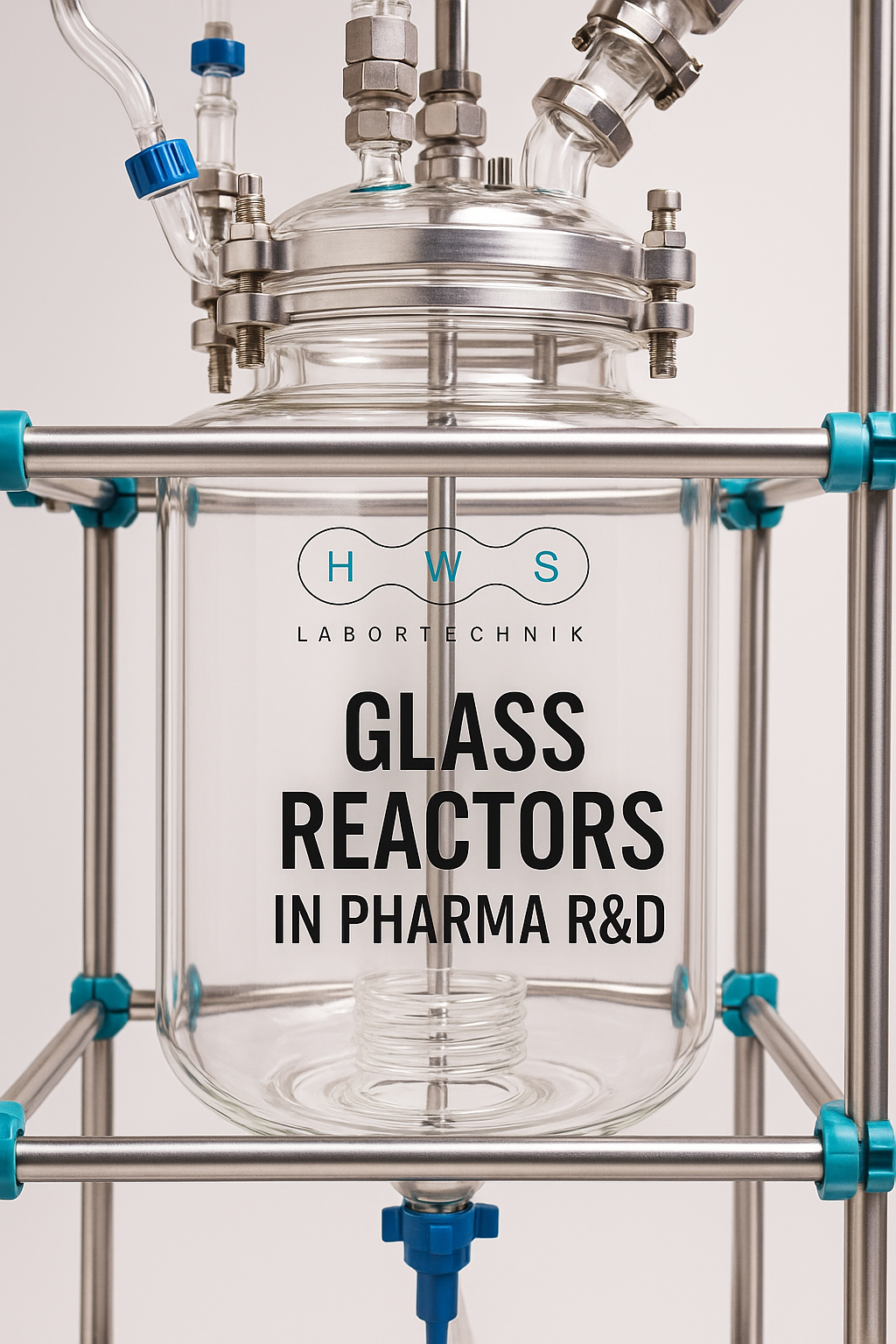

Glass Reactors in Pharma R&D: Why Customization Matters

Modern pharmaceutical R&D labs rely on glass reactor systems for synthesis, process development, and scale-up trials. These vessels let scientists run reactions under tightly controlled temperature, pressure, and mixing.

Borosilicate glass reactors add two decisive advantages: chemical resistance and visual transparency. Researchers safely handle corrosive reagents while watching the process in real time. That visibility helps teams track color shifts, precipitation, or other signals that confirm progress and prevent batch failures.

Because borosilicate expands very little, it resists thermal shock. Teams can cool from reflux to crystallization without cracking the vessel. Consequently, glass reactors suit complex API and intermediate synthesis in demanding lab conditions.

Why “One Reactor for Everything” Falls Short

Not every process fits a standard reactor. Teams often face unusual temperature profiles, sensitive materials, or specific mixing needs that off-the-shelf designs can’t cover.

During scale-up, chemists must ensure that a bench result behaves similarly in a larger vessel. Differences in geometry or heat transfer can derail tech transfer.

Where Custom Reactors Win

Custom glass reactors close those gaps. Our company designs each reactor around the process, not the other way around. HWS provides advanced reactor systems and custom glassware that meet rigorous pharma standards. Labs receive vessels that match exact specifications—from a 100 mL discovery reactor to a 50 L pilot unit.

The payoff: safer operation, higher efficiency, and better reproducibility than generic systems.

How Pharma Uses Glass Reactors Across the Lifecycle

Early Discovery

Chemists use small jacketed reactors to synthesize candidate molecules and explore conditions. Glass provides an inert, clean environment—vital for potent compounds that must remain pure.

Process Development

Engineers shift to 1 L, 5 L, 20 L, and larger reactors to tune parameters. Double-walled jackets deliver precise heating and cooling. Teams integrate condensers and distillation heads to expand capability.

A jacketed system can hold 0 °C or maintain reflux at 120 °C by circulating thermal fluid. Transparent walls reveal mixing patterns, phase splits, and crystal growth—insights that sharpen crystallization and emulsification work.

Scale-Up and Pilot Work

Well-designed glass reactors help teams scale while preserving similar conditions to production. By keeping geometric similarity, engineers maintain mixing and heat transfer as volume grows and spot scale-up risks earlier.

For exothermic routes, a small reactor with a cooling coil can mimic the plant’s cooling capacity. Many pharma groups run 20–50 L pilots to produce clinical material and validate control at larger volumes.

Example: Altana Pharma AG ran a 30 L triple-walled glass reactor from HWS to simulate a multistage organic synthesis. The team scaled from 0.25 L to 30 L while controlling temperatures from −50 °C to 170 °C. They confirmed reproducible behavior at pilot scale.

HWS Custom Glass Reactors: Capabilities and Strengths

Premium Materials and Construction

HWS builds every vessel from Type I, Class A borosilicate glass sourced from Schott. Skilled glassblowing ensures robust flanges and jackets. Where necessary, HWS integrates glass-lined steel or PTFE for extra strength or corrosion resistance. This materials stack lets labs handle aggressive media without glass degradation.

Tailored Designs: Size, Jackets, Ports

HWS covers ~100 mL benchtop units up to 150 L pilot systems. Jackets range from single to triple wall with vacuum insulation for extreme temperature control. Teams choose the exact ports: extra necks for probes, funnels, sampling valves, and more. HWS supports taper joints, flat flanges, and custom flanges.

A dead-volume-free bottom drain valve speeds recovery of valuable products and viscous fluids. Self-adjusting seals stay tight across temperature swings. Teams can even place a temperature probe in the drain to track product outflow.

Precision Stirring and Gas-Tight Sealing

Many pharma reactions involve slurries or viscous media. HWS selects anchors, turbines, or propellers to match viscosity and mixing goals. Magnetic drives deliver gas-tight, leak-free stirring for inert or vacuum runs—with no grease contamination and no seal friction on the glass shaft.

Integrated Automation and Turnkey Delivery

HWS supplies controllers, indicators, and interfaces that plug into lab software or a DCS. Automation regulates ramps, stirring, and dosing while logging data for reproducibility and audit trails.

For faster deployment, HWS delivers skid-mounted mini-plant systems with matched stands, condensers, pumps, and controls. The unified design reduces setup errors and accelerates validation.

Quality Assurance and Compliance

Each reactor carries a burned-in serial number and manufacturing date. HWS maintains material certs, QA reports, and drawings to streamline maintenance and audits. Pharma clients use this traceability to align with GMP expectations.

Case Studies: Custom Reactors That Move the Needle

Case 1 — API Step Optimization

Challenge: A 5 L reaction stalled, gave inconsistent yields, and spiked during an exothermic addition. A standard propeller failed to mix a thick slurry, and a single jacket couldn’t remove heat fast enough.

Solution: HWS supplied an anchor impeller with baffles and a vacuum-insulated double jacket. Extra ports allowed controlled feeds and vented condensation.

Outcome: Uniform mixing eliminated dead zones. The jacket held the setpoint within ±2 °C at the peak. Yield rose from ~70% to ~90%, and cycle time dropped ~20%.

Case 2 — Scale-Up from 2 L to 50 L

Challenge: The team needed dynamic similarity for a catalyst suspension with a moderate exotherm and full GMP documentation.

Solution: HWS matched height-to-diameter ratios, baffles, and impeller geometry. A triple-wall jacket handled thermal load and emergency quench. Multiple sensors fed the site’s historian. HWS delivered full certificates and pressure-test reports.

Outcome: The first 50 L batch matched 2 L kinetics and yield. Temperature profiles overlaid within a small margin, reducing iterative scale-up risk and supporting regulatory filings.

Case 3 — GMP and Potent Compound Safety

Challenge: A highly potent, moisture-sensitive route required inert containment, CIP, and full traceability.

Solution: HWS integrated a 10 L reactor into a glovebox with magnetic drive and high-integrity seals. All wetted parts were certified. A spray ball and zero-dead-space drain enabled CIP. Data logging captured temperature, pressure, and rpm.

Outcome: Oxygen stayed below 0.5% during runs. Operators avoided exposure, and CIP passed validation. Auditors accepted the materials and documentation package.

Best Practices: Selection, Operation, Maintenance

Selecting the Right Glass Reactor

Match Volume to Need
Choose a vessel that fits typical batches and allows headroom for foaming and vapor expansion. If you run ~4 L, pick 5 L to protect against overflow and support distillation.

Choose the Right Jacket and Control
For ambient to 150 °C, a single jacket often suffices. For < −50 °C or higher temperatures, use double or vacuum-insulated jackets. Size the circulator for heat load and volume.

Confirm Materials Compatibility
Borosilicate suits most pharma chemistry. For photochemistry, specify quartz lamp wells. For light-sensitive work, use amber coatings. Select seals (PTFE, FKM/Viton®, FFKM/Kalrez®) that match solvents and temperatures.

Plan Ports and Accessories
List funnels, probes, condensers, gas inlets, vacuum adapters, sampling, and drains. Design lids with enough correctly sized ports. Consider interchangeable lids for future needs. Prefer bottom outlets for full drainage.

Specify the Stirring System
Match impeller style and motor torque to viscosity and volume. For inert or vacuum work, choose a magnetic drive. Good mixing stabilizes temperature and boosts yield.

Work with Reputable Partners
Select suppliers who provide drawings, material certs, serial traceability, and support. Ask for GMP-minded features if you may move to regulated use.

Operational Best Practices

Follow SOPs and Train the Team
Write procedures for assembly, operation, and emergencies. Use proper frames and, where needed, shields or enclosures.

Control Temperature and Pressure
Respect limits. Vent evolving gas and test relief devices before runs. Log temperature and pressure continuously. Ramp heat and cooling to avoid thermal shock.

Charge and Mix Safely
Add exothermic reagents slowly via funnels or pumps while stirring. Ground metal parts to prevent static. Purge with nitrogen or argon for air- and moisture-sensitive steps. Use interlocks for unattended operation.

Monitor and Document
Record temperatures, rpm, additions, and observations. Calibrate probes and any load cells or flowmeters on a schedule.

Prepare for Emergencies
Keep spill kits handy. Define steps for leaks or cracks: shut down heat, contain safely, and evacuate if required. Pre-plan quench or crash-cool options for exotherms.

Maintenance and Care

Clean After Each Use
Remove residues to prevent cross-contamination. Use mild detergents and soft tools. Rinse thoroughly. For stubborn deposits, select compatible solvents and protect seals.

Inspect Regularly
Look for chips, scratches, and hairline cracks—especially around ports and flanges. Remove compromised vessels from service immediately.

Maintain Seals and Valves
Check O-rings, bushings, and valve plugs for wear or swelling. Replace proactively. Lubricate ground joints as specified. Service motors or gearboxes per schedule.

Avoid Thermal and Mechanical Shock
Allow equipment to cool before disassembly. Use padded clamps and correct torque. If joints seize, release them with heat or spray—don’t force them.

Store Properly
Dry and label components. Store on padded shelves or in original packaging. Avoid stacking heavy items on glass. Inspect and rinse infrequently used parts before the next run.

Key Takeaways

Custom glass reactors give pharma teams precise control over complex chemistry. When you match the vessel to the process—and maintain it with discipline—you gain:

Higher safety through stable control and proper containment
Faster development via reliable mixing and heat transfer
Better reproducibility with integrated data and compliant design

As R&D tackles tougher modalities and tighter timelines, flexible and robust reactors remain essential. With proper selection, operation, and care, glass reactors evolve from simple vessels into platforms for innovation.
