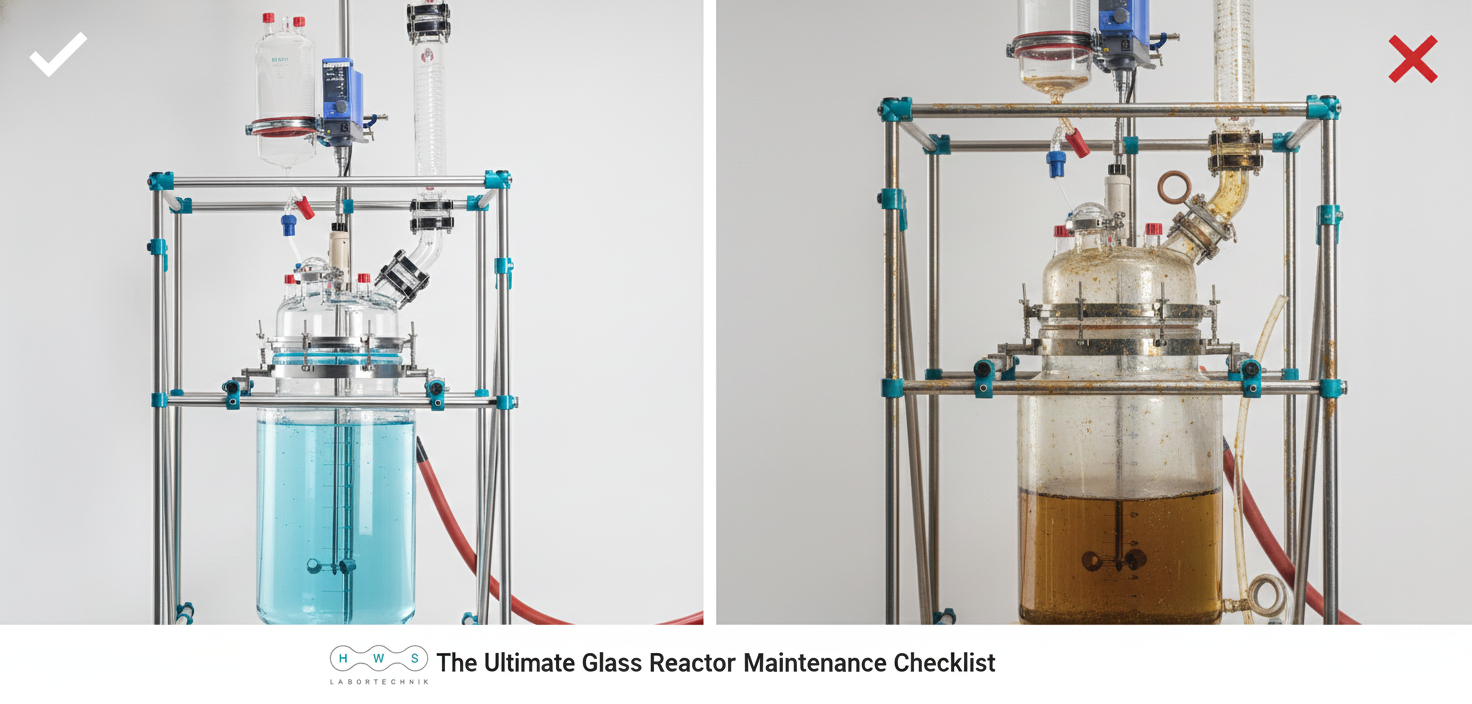

The Ultimate Glass Reactor Maintenance Checklist: Protecting Your Process (and Your Sanity)

Let’s be honest for a second: nobody goes into chemical engineering because they love scrubbing flanges or greasing joints. You do it for the chemistry, the discovery, and the scale-up.

But every lab manager knows that specific sinking feeling—the sound of a stirrer motor straining, the sight of a vacuum gauge that refuses to drop, or worse, the distinctive crack of thermal shock.

At HWS Labortechnik Mainz, we build our custom reactor systems to take a beating. We use premium Borosilicate glass 3.3 precisely because it handles aggressive thermal shifts and nasty corrosion better than almost anything else. But even the best German engineering isn’t magic. It’s a machine, and like any high-performance machine, it needs respect.

We’ve compiled this checklist not just to help you tick boxes, but to help you avoid that Friday afternoon disaster. Here is the practical, no-nonsense guide to keeping your glass reactors running as smoothly as the day they left our shop.

The “Pre-Flight” Check (Daily)

Time required: 2 minutes

You don’t need a toolkit for this. You just need eyes and ears. Make this a habit for your team before they even touch the control panel.

1. The “Star Crack” Hunt

Glass doesn’t usually fail all at once; it fails slowly, then suddenly. Grab a flashlight and do a quick sweep of the vessel. You are looking for “star cracks”—tiny, hairline fractures that often form where glass meets metal or hard plastic.

Check the Bottom Outlet Valve (BOV): This is the highest stress point. If a wrench slipped last week during cleaning, this is where the evidence will be.
Check the Nozzles: Look at the inlet/outlet fluid connections. If hoses are pulling too hard on the glass nozzles, you’ll see stress fractures here.

2. The “Coffee Grinder” Test

Turn your overhead stirrer on at low RPM (if safe/empty). Listen.

What you want to hear: A smooth, consistent hum.
What you don’t want to hear: Rhythmic scraping or grinding. If you hear scraping, your stirrer shaft is misaligned. It might be hitting a baffle or the reactor wall. Stop immediately. A spinning PTFE or steel shaft rubbing against a glass wall will scour a groove into the glass within hours, turning your pressure-rated vessel into a ticking time bomb.

3. The Jacket Inspection

Look at the thermal fluid jacket. Is it clear? If you see floating debris or “sludge” settling at the bottom, you have a circulation problem. That debris creates hot spots (or cold spots), which ruins your temperature control data.

The “Friday Afternoon” Protocol (Weekly/Bi-Weekly)

Time required: 15 minutes

This is about preventing the slow drift that kills reproducibility.

1. Joint Care (The Anti-Seize Rule)

There is nothing—and we mean nothing—more frustrating than a fused ground glass joint. It usually happens when caustic reagents sneak into the joint or when high heat drives off the grease.

The Routine: Loosen every standard taper joint (condensers, dropping funnels). Wipe off the old grease. It’s likely contaminated with chemicals anyway.
The Fix: Apply a fresh, thin smear of high-vacuum grease.
HWS Pro Tip: If you are using PTFE sleeves instead of grease to avoid contamination, take them out and look for tears. A torn sleeve is a leak waiting to happen.

2. The Vacuum Integrity Test

You don’t want to find out you have a leak in the middle of a distillation.

Isolate the reactor.
Pull a vacuum to your standard operating level.
Close the valve to the pump and watch the gauge for 5 minutes.
The Standard: A slow creep is normal. A rapid drop means you have a loose clamp or a degraded O-ring.

3. Thermal Fluid Health

Check the oil or glycol in your circulator bath. Is it changing color? Dark, syrupy fluid has oxidized. It’s now an insulator, not a conductor. This puts massive strain on your circulator pump and slows down your heating/cooling ramps. If it looks like dark maple syrup, flush it.

The “Deep Dive” (Quarterly or Post-Campaign)

Time required: 1-2 hours

This is where you take things apart. If you run a multi-purpose plant or switch between aggressive chemistries, this step is non-negotiable.

1. The O-Ring Cull

Elastomers are the sacrificial lamb of the chemical world. They die so your glass doesn’t have to. Inspect your FKM (Viton), FFKM (Kalrez), or PTFE-encapsulated O-rings.

Look for: Flattening (compression set), swelling (chemical attack), or brittleness (thermal damage).
The Rule: If you have to ask “Is this O-ring still good?”, it’s not. Replace it. They are cheap; your batch is expensive.

2. The Bottom Outlet Valve (BOV) Breakdown

The BOV sees the worst of it—crystals, sludge, and high torque.

Disassemble the valve mechanism.
Clean the plunger stem thoroughly.
Check the Sealing Tip: If you use a PTFE tip, feel the edge. Is it jagged or deformed? A deformed tip requires you to overtighten the valve to get a seal, which stresses the glass nozzle. Replace the tip if it’s not perfectly smooth.

Check out our proprietary bottom outlet valves here.

3. Descaling the Jacket

Over time, water scale or mineral deposits build up inside the reactor jacket, especially if you use tap water for cooling. This scale acts like a layer of insulation.

The Fix: Circulate a commercial descaling solution (compatible with your circulator!) through the jacket for a few hours. You will be amazed at how much faster your crash-cooling steps become afterward.

Common “Crises” & How to Solve Them

We asked our service team for the most common panic calls they get. Here is how to handle them.

“Help, the joint is stuck!”

Do not grab a wrench. Glass has high compressive strength but zero tensile strength. If you twist it with force, it will snap in your hand.

Soak it: Spray penetrating oil into the seam. Let it sit.
Heat it: Gently heat the outer female joint with a heat gun (expand the outer layer) while leaving the inner male joint cool.
Vibrate it: If the piece is removable, an ultrasonic bath often works miracles.

“My reactor is heating up slower than it used to.”

It’s rarely the glass. It’s almost always the Delta-T limit on your circulator or the fluid itself.

Check if your circulator software has a “Delta-T” safety limit set too low.
Check your hoses. Are they kinked? Are you using uninsulated metal hoses that are bleeding heat into the room before reaching the reactor?

A Note on “Frankenstein” Setups

One thing we see often in R&D labs is what we affectionately call the “Frankenstein Reactor”—an HWS vessel, a competitor’s lid, a clamp from 1995, and a generic stirrer.

While our modular glass reactor platforms are designed to be compatible with standard lab parts, mixing and matching seals and clamps can lead to uneven pressure on the glass flanges.

Check your clamps: Ensure your quick-release clamps are actually sized for the specific flange angle of your reactor. A poorly fitting clamp creates point-stress, which is the enemy of glass.

Final Thoughts: Maintenance is Safety

Ultimately, keeping your HWS reactor in top shape isn’t just about protecting the equipment—it’s about protecting the people standing in front of it. A well-maintained reactor is a predictable reactor. And in chemistry, predictability is everything.
