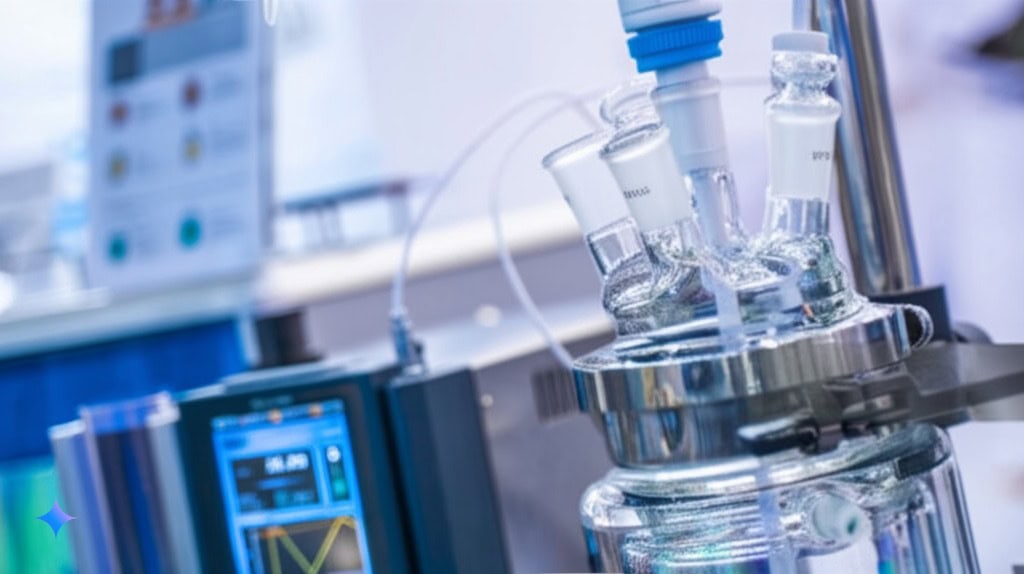

Modern laboratories and chemical production facilities depend heavily on glass reactor systems to perform reactions under precisely controlled conditions. From academic research labs to industrial pilot plants, customizing glass reactors has become vital. However, standard off-the-shelf reactors often fail to meet specialized needs, making tailored reactor designs a critical tool for scientists and engineers. This article explores why custom glass reactors are essential, describes common customization options, and illustrates key applications that benefit from tailored designs. Additionally, we examine how reactor customization improves safety, efficiency, and reproducibility.

The Importance of Customized Glass Reactors

Every chemical process has unique requirements, eliminating the possibility of a universal “one-size-fits-all” reactor. For instance, academic researchers may investigate novel reactions under unusual temperature or pressure conditions. Similarly, industrial chemists frequently scale up processes, demanding reactors that behave predictably at larger volumes. Therefore, custom glass reactors address these specialized needs by precisely tailoring features such as mixing, heating, cooling, and measurement capabilities.

Key Customization Options

Reactor Volume and Scale-Up

Firstly, reactor volume is the initial consideration, with custom designs available from small benchtop flasks (100 mL) to pilot-scale vessels (150 L or more). Selecting the correct volume ensures the reactor matches the scale of your process. Additionally, researchers often choose reactors slightly larger than their intended reaction volume to accommodate foaming, vapor expansion, or agitation without overflow.

Moreover, geometric similarity between lab-scale and production reactors is crucial for successful scale-up, ensuring consistent mixing and heat transfer characteristics. Custom “mini-plant” reactors that mimic larger units help identify potential scale-up issues early, thereby minimizing development risks.

Jacket Design and Temperature Control

Effective temperature management is crucial for reaction success. Consequently, jacket customization options include single or double jackets and sectional designs for targeted heating or cooling. For instance, double-jacket reactors with vacuum insulation significantly enhance thermal control for reactions at extreme temperatures. Thus, custom-designed jackets enable precise and uniform temperature control, essential for safety and reaction quality.

Materials of Construction

Borosilicate glass is standard due to its thermal and chemical resistance, but custom reactors often employ specialty materials such as quartz for UV transparency in photochemical applications or amber glass to protect light-sensitive reactions. Additionally, materials like PTFE, Viton®, or Kalrez® can be chosen for fittings, seals, and stirrer components to enhance chemical compatibility and durability.

Port Configuration

Customized port design addresses the specific needs of chemical processes, enabling multiple probes, addition funnels, condensers, or sensors. Furthermore, custom reactors can incorporate various port styles, including ground-glass joints, threaded fittings, or flange ports. Moreover, a bespoke bottom drain valve ensures efficient handling of viscous materials or simplifies sampling and product removal.

Stirring and Mixing Mechanisms

Efficient mixing is vital, especially in viscous or heterogeneous reactions. Therefore, customization of stirrer design includes selecting appropriate impeller types (anchor, turbine, ribbon), motor torque, and magnetic couplings for leak-proof operation. In addition, integrating internal baffles further enhances mixing efficiency, critical for maintaining reaction consistency.

Automation and Integration

Advanced reactors integrate automation features such as temperature, pressure, stirring, and data logging. Custom reactors can also interface with existing laboratory software or plant control systems, enhancing precision, reproducibility, and safety. Ultimately, automated systems eliminate variability and allow consistent reaction control.

Applications Benefiting from Custom Reactors

Scaling from Benchtop to Pilot Plant

Custom reactors provide critical insights during scale-up, allowing accurate data collection on mixing, heat transfer, and reaction kinetics. Reactors designed with geometric similarity to production-scale units reveal potential issues, thus improving safety and predictability during scale-up.

Handling High-Viscosity Reactions

Viscous mixtures require specialized reactors with powerful motors, anchor agitators, and enlarged bottom valves to handle thick materials effectively. Consequently, customized stirring and heat removal systems enable efficient and safe handling of challenging reactions like polymerization or resin synthesis.

Extreme Temperature Processes

Reactions conducted at cryogenic (-80°C) or high-temperature conditions (150°C+) demand reactors with excellent insulation, special materials, and precise temperature control. Therefore, customized double-jacketed vessels with vacuum insulation ensure stable, safe, and effective temperature management.

Photochemical and Light-Sensitive Reactions

Customized reactors are indispensable for photochemical processes or light-sensitive reactions. Quartz components ensure UV light transmission for photochemical reactions, while amber or opaque glass protects sensitive reactions from harmful wavelengths. Moreover, specialized ports or immersion wells facilitate effective illumination and cooling.

Enhancing Safety, Efficiency, and Reproducibility

Customized reactor designs significantly enhance safety by incorporating suitable materials, pressure relief valves, and efficient draining methods. Furthermore, optimized reactors boost efficiency by reducing reaction times and improving yields through precise control of heat and mixing. Additionally, custom designs ensure reproducibility by consistently controlling all reaction parameters, thereby reducing variability and enhancing experimental reliability.

Let’s Wrap Up

In conclusion, customizing glass reactors aligns equipment precisely with chemical processes, delivering superior safety, efficiency, and reproducibility. Whether scaling reactions, managing viscous media, controlling extreme temperatures, or conducting photochemical studies, custom reactor designs overcome limitations of generic systems. Ultimately, investing in tailored glass reactors empowers scientists and engineers to achieve groundbreaking results reliably and safely.
