Bottom-Outlet Valves in Glass Reactors: Engineering for Precision, Safety and Cleanability

When chemical engineers evaluate the performance of a glass reactor, their attention often turns to agitator design, thermal control, and the durability of glass components. Yet every reaction—whether fast, slow, exothermic, or delicate—must eventually leave the vessel. Because of this, the bottom outlet valve becomes far more important than many users initially assume.

In laboratory and pilot-scale reactors, the bottom outlet valve is not just a drain. Instead, it acts as a mechanical seal, a dosing device, a safety barrier, and a point where temperature and pressure changes meet the outside world. It even influences cleaning, contamination risks, and day-to-day workflow. Consequently, a well-designed valve supports the entire process, while a weak one can undermine it.

From an engineering perspective, the bottom outlet valve must meet many demands at the same time. It must prevent dead volume, keep a stable seal under heating and cooling, resist aggressive chemicals, and allow controlled discharge. Furthermore, it must protect the glass body from stress and integrate with automation or safety systems. When any of these fail, the whole process becomes less reliable.

Because of these challenges, modern reactor engineering treats the outlet valve as a true precision component. Manufacturers vary in their design philosophy, but HWS builds valves that focus on sealing integrity, operator safety, and predictable performance. With this in mind, we can now explore in more detail how reactor valves work in general and how HWS engineered its portfolio to meet the needs of chemical laboratories.

Why the Bottom Outlet Valve Determines Reactor Performance

From a process point of view, the outlet valve sits at a location exposed to heat, chemicals, mechanical load, and operator interaction. It faces temperature cycling, solids, corrosion, and torque forces. As a result, if the seal becomes unstable, the reactor becomes a risk rather than a tool.

HWS addresses these challenges with two core concepts.

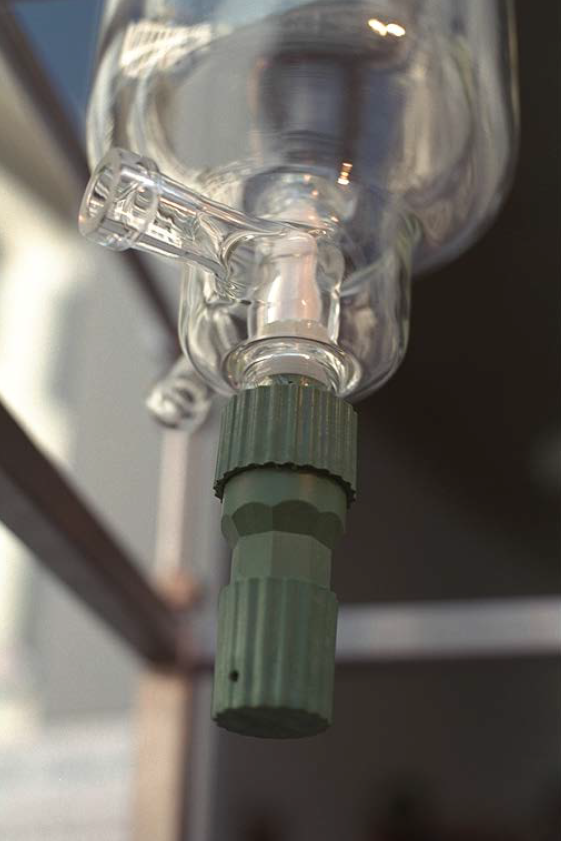

Cavity-free sealing at the lowest point of the reactor

All standard HWS valves seal directly on the glass bottom. This avoids dead zones, improves yield, simplifies cleaning, and reduces cross-contamination risk.

PTFE as the main contact material

PTFE brings chemical resistance, low friction, and stable performance over wide temperature ranges. Because of these properties, HWS can design replaceable tips and self-adjusting spindles without stressing the glass.

Temperature Compensation: Engineering Stability Into the Seal

A key feature in models such as T, H, K, M, and Q is the integrated temperature-compensation spring. Since PTFE and borosilicate glass expand differently with heat, the spring keeps the sealing pressure constant. In turn, this prevents leaks, protects the reactor bottom, and ensures smooth operation even when conditions change.

The Engineering Logic Behind the HWS Valve Models

1. The Standard Line: T, H, and Q (DN 10, 20, 25)

These models are designed for general laboratory use. They combine a PTFE spindle, temperature compensation, and a 45° angled outlet for clean run-off. Because they offer reliable sealing and smooth operation, they are used in many synthesis, solvent removal, and crystallization steps.

2. Short-Length Variants: K and M

In fume hoods or compact system setups, height often becomes a limiting factor. Therefore, HWS developed the K (DN 10) and M (DN 20) short models. They are fully compatible with the standard versions but reduce the installation height.

Outlet Valves With Integrated Instrumentation: PT100 Variants

Bottom temperature can strongly affect crystallization and solvent evaporation. For this reason, HWS offers variants with PT100 sensors integrated directly into the valve body (T/PT, K/PT, H/PT, M/PT, Q/PT). This design allows accurate measurement down to nearly zero liquid volume, giving researchers more control over reaction endpoints.

Valves for Gassing Operations: Built-in PTFE Hose

Some reactions require gas introduction from the very bottom of the reactor. Models such as T/B, K/B, H/B, and M/B solve this with an internal PTFE hose. Because the gas enters at the lowest point, mixing improves, dead zones decrease, and operations like hydrogenation or purging become more efficient.

Pneumatic Valve Options: PT, PH, PQ

Automation is increasingly common in research and pilot plants. With this in mind, HWS developed pneumatic outlet valves that allow remote control. They provide reproducible actuation, adjustable stem travel, and easy integration with existing systems. As a result, they are ideal for automated dosing, draining, and GMP-oriented workflows.

The Plus Models: L and P — Adjustable Sealing for Maximum Protection

For sensitive or long-running processes, sealing quality becomes critical. The L (DN 10) and P (DN 20) models include an adjustable seal inside the PTFE spindle. Thanks to this design, the contact with the glass surface is more controlled and more reliable. These valves are often selected when reactions must run safely overnight or involve costly materials.

Spare Parts Philosophy: Long-Term Maintainability Built In

Because laboratory equipment is expected to last many years, HWS offers a wide range of spare parts. These include complete stems, full valve bodies (except for glass parts), sealing sets made from different materials, and Duran glass components. This modular approach simplifies maintenance and extends the service life of reactors.

When No Dead Volume Is Allowed: The Silitec Valve Series (DN 50)

For larger reactors or systems that handle solids, the Silitec series offers a more advanced concept. It uses a siphon-valve design with a cavity-free seal, a self-adjusting pressure point, torque protection, and Perfluor O-ring seals. Because of this, it performs well under thermal stress and allows both precise dosing and fast draining. Variants include manual (Silitec T), adjustable sealing (Silitec L), and pneumatic (Silitec PT) models.

Materials and Seal Options

Different chemistries require different seal materials. HWS supports this by offering Viton, Silicone/FEP, and Kalrez/Perfluor elastomers. As a result, users can select the right sealing system for acids, ketones, chlorinated solvents, or mixed media.

Choosing the Right Valve for Your Application

When selecting a valve, engineers usually consider:

• bore diameter (DN 10–50)
• manual or pneumatic actuation
• available installation height
• need for temperature monitoring
• need for gas introduction
• sealing performance in demanding reactions

Because the HWS portfolio is modular, users can configure the valve to match the chemistry and the equipment with ease.

Conclusion: A Reactor Is Only as Reliable as Its Valve

A bottom outlet valve influences how efficiently a reactor drains, how safely it operates, and how reproducible its processes become. It even affects long-term maintenance and cleaning. For these reasons, it should be treated as a critical part of the system rather than a simple accessory.

HWS valves bring together mechanical design, PTFE expertise, and a strong focus on user safety. Whether working with small-scale synthesis or pilot-scale production, researchers can rely on a valve that supports stable operation and predictable results.
